South Coast Repeater and Beacon Group

The Bell Hill beacon complex

Scroll down to view the photos ....

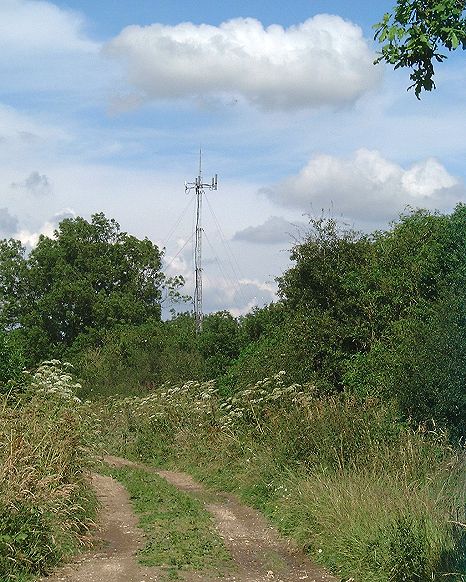

Approaching the mast

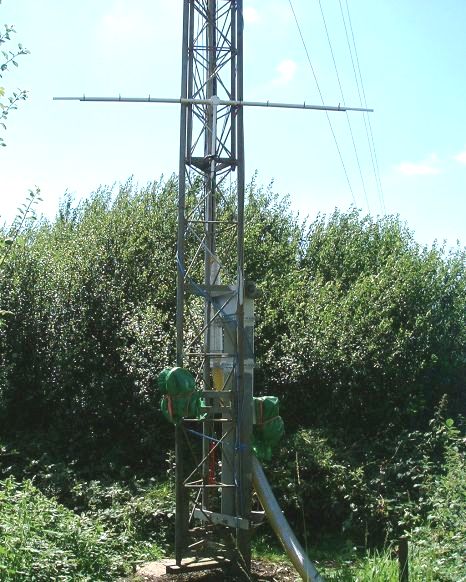

The mast in the raised position

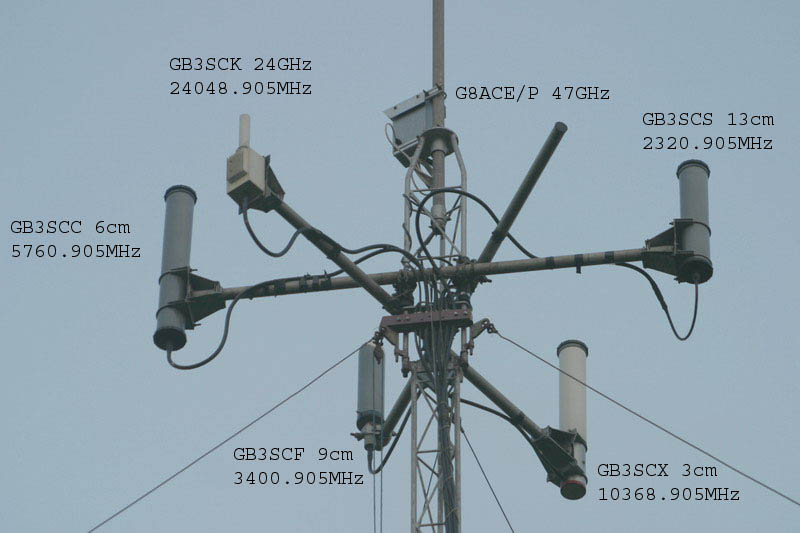

The mast head unit (with the 47GHz beacon on the central pole)

70MHz telemetry antenna

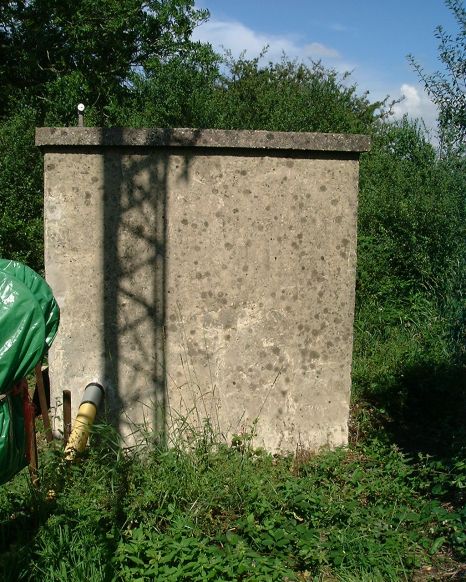

The hut which houses the driver equipment

G0API and G4LDR working on the hut

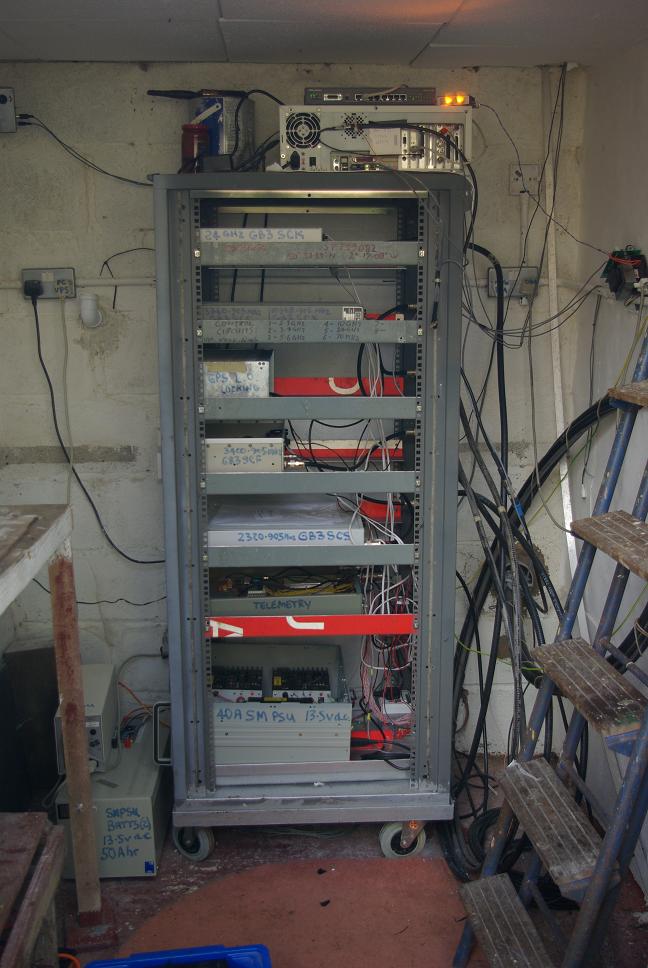

The Equipment Rack

Some of the Hardware

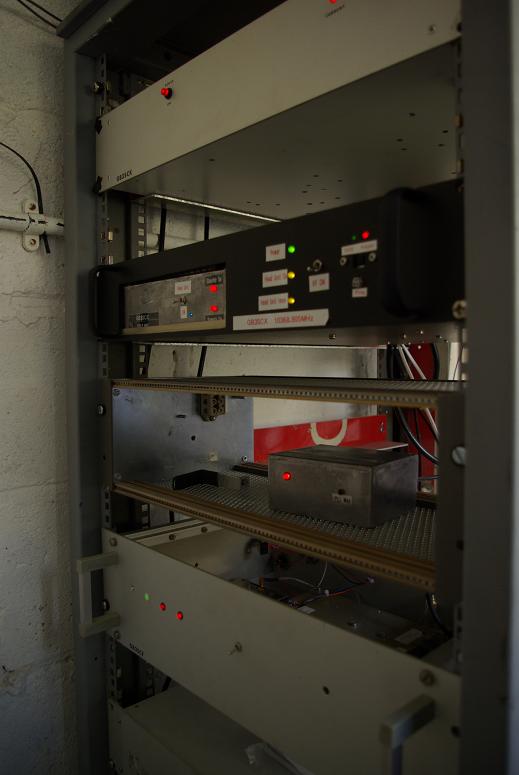

Another View

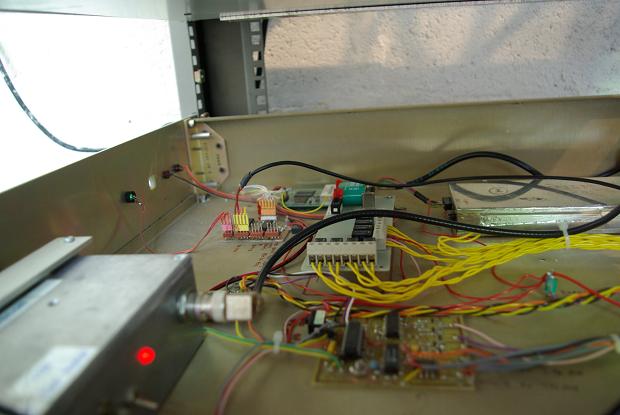

Control, Telemetry, GPS, UHF and 70MHz link modules.

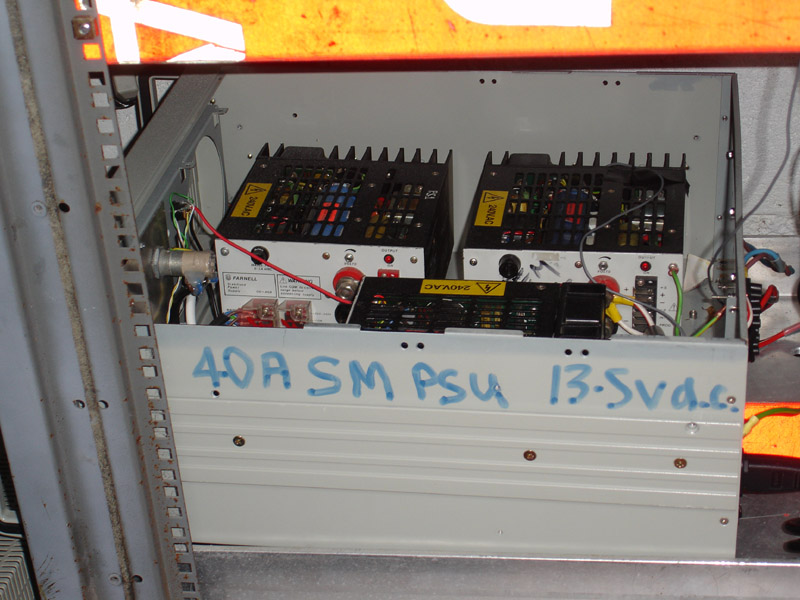

Power Supplies

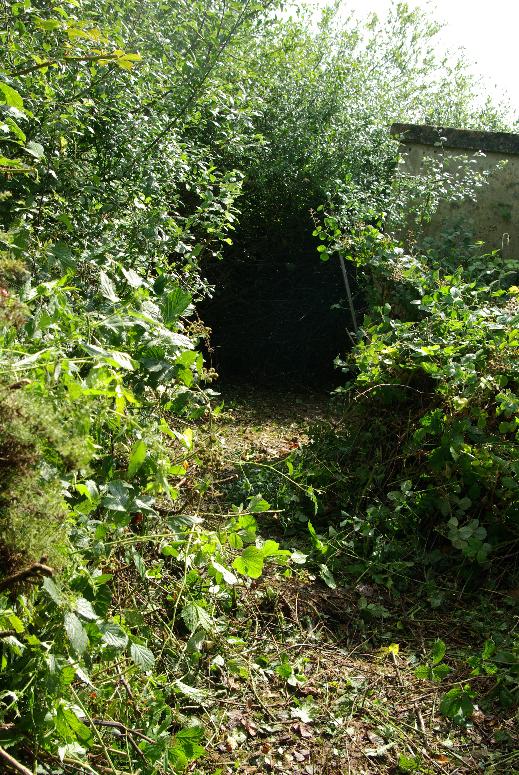

If you don't prune the foliage around a beacon site, it gets like this ...
A gardening session after several years of growth
